OAuth 2 Single Sign On Integration
MembershipWorks provides industry standard OAuth 2 Single Sign On (RFC 6749 - Authorization Code Grant) to allow third party systems to use MembershipWorks as the authorization server (login provider).
A common use for this feature would be to enable members to sign in to a forum or Learning Management System (LMS) application through the MembershipWorks sign in.
The third-party application will need to support the industry-standard OAuth 2 Authorization Code Grant protocol. MembershipWorks will act as the authorization server and the application would be the client application.
Step by Step Instructions
Step 1: Sign in as Primary Admin
Login as the primary admin and go to Organization Settings > Apps.

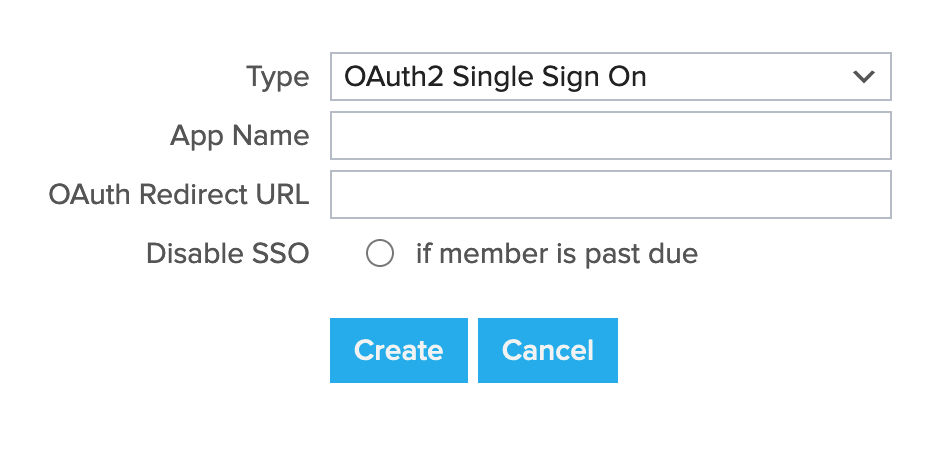

Step 2: Add App
Click on + Add App.
Step 3: Set App Name
Next to App Name, enter a name so you can identify what app you are using this for.
Step 4: Set Redirect URL
Provide the OAuth Redirect URL (this should be given to you by the third party system)
Step 5: Create App
Click Create
Step 6: Note Down App Credentials
Copy
down the Client ID, Client Secret, Token Endpoint and User Info
Endpoint. In particular the Client Secret is only available after step 5
so make sure to copy it down carefully.
The
Client ID, Client Secret, Authorization Endpoint, Token Endpoint and
User Info Endpoint will all be required by the third party system to
implement SSO. The Authorization Endpoint will be the URL of the member
login page on your website - ie. the page where you've placed the
MembershipWorks "Member Sign In and Manage Account" shortcode or
snippet. Note that this page should not have a memberonly
shortcode/snippet as well.
Member Login
Once
the third party system is setup, when members need to login to that
system they will be directed to the member login page on your website.
If the member is not already logged in they will be prompted to login. Once they are logged in, MembershipWorks will provide the authentication
token to the third party system that will allow it to lookup the
member's info via the User Info endpoint. The User Info endpoint will
provide the following information:
- account_id - member's MembershipWorks account ID
- email - email address field
- name - account name field
- contact_name - contact name field (if applicable)
- organization_name - organization name field (if applicable)
- phone - phone field (if applicable)
- mobile - mobile field (if applicable)
- fax - fax field (if applicable)
- website - website field (if applicable)
The
User Info endpoint also provides information on address, membership
level, membership add-ons, membership expiration date, labels, folders
and card image objects. But typically most third party systems will only
utilize the email and name data.
